Flexitanks convert ordinary shipping containers into effective bulk liquid carriers. The concept is simple, but achieving a safe operation demands more than just inserting a bag and attaching a hose. Every step—from cargo selection to final discharge—affects the outcome. A well‑run operation treats loading and unloading as a single, traceable workflow with checks at each phase.
Flexitanks are designed for non‑hazardous liquids, but “non‑hazardous” does not guarantee compatibility with all bag materials. The consignor must supply the product name, safety data sheet, density, viscosity, filling temperature, anticipated transit temperature, and any sensitivity to oxygen, moisture, light, or odours. This information lets the supplier choose the right film composition, valve layout, barrier properties, and size.
Density directly influences the permissible fill weight—a volume that works for light edible oil may exceed gross mass limits for a denser industrial fluid. Viscosity affects pump selection, loading duration, discharge efficiency, and leftover volume. Products that thicken in cold weather may require insulation, gentle heating, or route adjustments, all of which must be pre‑approved.
Before filling begins, designate a safe zone around the container doors and valve area. Only trained staff may enter during loading or discharge. The site must have level ground, good lighting, restricted access, spill kits, proper PPE, and an emergency stop mechanism. Hoses must be rated for the product, temperature, pressure, and fittings. Pumps, clamps, gaskets, adapters, and measuring devices should be pre‑inspected.
The container must be sound, clean, dry, and suited to the intended payload. Inspect the floor, walls, roof, front bulkhead, doors, locking bars, hinges, and corner posts. Reject units with sharp protrusions, exposed nails/screws, broken floorboards, deep dents, corrosion, holes, water stains, persistent smells, chemical residues, or pest traces. Even a minor sharp edge can abrade the film when cargo shifts during transit.
Sweep the interior thoroughly; if needed, wash it according to food‑hygiene standards. Repairs must leave a flush surface. Loose cardboard or makeshift padding is not acceptable, as it may move under load. For food‑grade or scent‑sensitive products, check for residual odours from prior cargoes—a clean appearance alone is not enough.
Follow the manufacturer’s installation manual precisely. The protective liner sits between the bag and the container walls. Unfold the empty flexitank carefully, avoiding dragging on rough ground. Do not step on the valve, pull the film with sharp tools, or create twists that could obstruct flow. Align the discharge valve with the bulkhead opening and secure it against lateral forces.

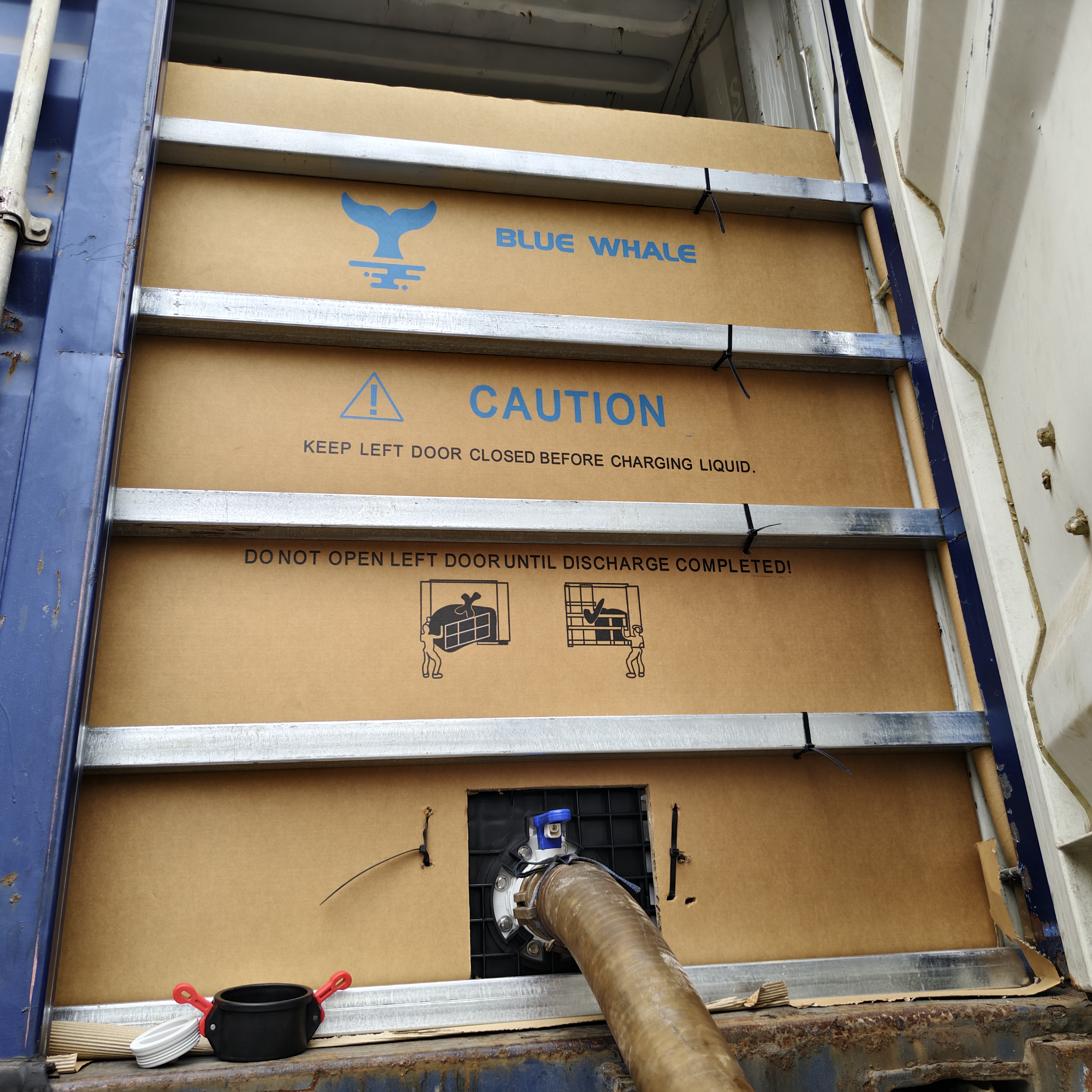

Install the bulkhead or restraint system at the door end to contain the liquid thrust and prevent pressure on the doors. Assemble support bars, panels, straps, and sleeves in the prescribed order. Using unapproved parts or altering the setup can weaken the system’s resistance to dynamic forces.
Before loading, confirm that the bag lies flat, corners are correctly placed, the valve is tight, cap and seal surfaces are clean, and no part is pinched or over‑tensioned. Take photos and complete an installation checklist to ensure consistency across shifts.
The hose must be clean, product‑compatible, and supported so its weight does not pull on the valve. Verify that gaskets are in place, connections are aligned, and clamps/couplings are fully locked. Keep the valve closed until the connection is secure and the operator is ready. For food cargo, all contact surfaces must comply with the shipper’s hygiene protocol.
Air pockets and sudden pump starts can cause pressure spikes. Start slowly and watch for leaks at the junction. Never exceed the recommended pressure for the flexitank—it is a flexible, gravity‑fed package, not a rigid tank. Forcing flow against a blocked hose or thick product may rupture the valve, hose, or film.
The initial phase is crucial because the bag expands and settles. Monitor the position of the flexitank, bulkhead, valve, and liner. The bag should inflate evenly, without snagging on any component or bunching near the doors.
If the bag shifts, the valve rotates, the bulkhead moves, or a leak appears, stop the pump immediately and investigate. Personnel must never stand between the bulkhead and an unsecured door during filling. Avoid climbing on the bag, entering the container after filling starts, or reaching into areas where expansion could trap limbs. All observation should be from safe positions defined in the work procedure.
Use a calibrated meter, weighbridge, or tank gauge to measure the fill quantity—do not rely on pump‑run time. Both underfilling and overfilling are problematic: overfilling may exceed capacity or weight limits, while significant underfilling allows excessive movement. The target volume must match the flexitank rating, cargo density, and permissible gross weight.
Near the end, reduce the flow rate for a precise stop. Inspect the valve zone, bulkhead, sidewalls, and floor for signs of leakage or abnormal distortion. Record the final volume, temperature, date, container number, flexitank ID, seal number, and responsible staff names.
After pumping stops, close the flexitank valve before detaching the hose. Drain the hose safely, release any trapped pressure, and remove the coupling without twisting the valve. Clean the valve exterior, fit the cap, apply the tamper‑evident seal, and fold any protective flap. The valve must not protrude where doors or handling gear could strike it.
Perform a final check before closing the right‑hand door. The bulkhead must remain seated, the support system intact, and the bag not pinched between the bulkhead and door structure. Close and lock the doors in the correct order. Affix the container seal and record its number on the shipping documents.
The verified gross mass must comply with legal and route restrictions. The transport plan should cover road, rail, terminal, and sea handling. A loaded flexitank container should be treated as a bulk liquid unit—no unauthorised opening, and careful lifting. Sudden impacts, faulty chassis, or poor stacking can create risks even with perfect loading.
Position the container on stable, level ground and chock the vehicle or chassis. Check the exterior for impact damage, leaks, stains, bulging, broken seals, or door distortion. Compare the seal number with the paperwork. If a leak or structural defect is visible, cordon off the area and follow the emergency plan rather than opening routinely.
Open only the designated access door while the bulkhead stays in place. Stand clear of the door swing and never remove the bulkhead before the bag is empty. Examine the valve, cap, seal, and surrounding area. If the bulkhead has shifted or the bag seems to press abnormally against the door system, stop and seek technical advice.
Support the discharge hose so it does not torque the valve. Confirm that the receiving line is connected and routed correctly, then open the valve slowly. If using a pump, ensure it is suitable for the product and does not create excessive suction that could collapse the liner or damage the valve assembly.
At the start, observe the connection and receiving system for leaks. Keep a controlled flow and monitor the destination tank level. Clear communication between the valve operator and pump operator is vital, especially when the receiving tank is remote. Everyone must understand emergency stop signals.
As the bag empties, the top film naturally collapses. Do not enter the container or pull aggressively on the bag while liquid remains. Avoid sharp tools, forklifts, hooks, or improvised squeezing devices that can puncture the film. If flow slows due to viscosity, use only approved measures—proper pumping, controlled warming, or manufacturer‑recommended residue‑reduction methods.
Near the end, reduce pump speed and avoid running dry. Depending on the cargo, gentle lifting or rolling may help move residual liquid to the outlet, but these actions must not endanger workers or expose them to the product. Dispose of remaining contents according to the shipper’s recovery and waste procedures.
After discharge and valve closure, confirm no significant liquid remains. Take down the bulkhead and liner in the approved reverse order. The used bag may still contain residues, so wear appropriate PPE and avoid uncontrolled cutting. Disposal or recycling options depend on the product, local rules, material condition, and available waste facilities.
Safety results from matching the packaging to the liquid, choosing a fit container, installing all parts correctly, controlling the transfer, protecting the loaded unit in transit, and unloading with discipline. When these elements are linked by clear responsibilities and records, flexitanks offer an efficient, low‑complexity solution for non‑hazardous bulk liquids.
